Product Details:
|
| Input Voltage: | Three Phase 380V±15% | Name: | Inverter AC DC TIG Welder |
|---|---|---|---|
| Color: | As You Required | Suitable Metal: | Aluminium,Stainless Steel,and Other Alloy |
| Technology: | Mosfet Technology | Efficiency(%): | 90 |
| High Light: | 315A AC DC Welder,315A TIG AC DC Welder,315A ac dc mig welder |
||

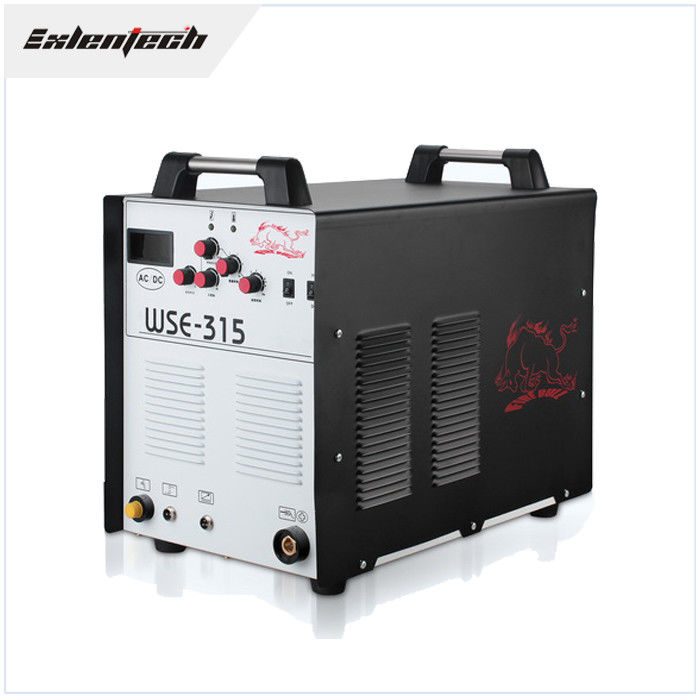

TIG 315A Pulse AC DC Welder 60% Duty Cycle Over Current Protection
AC DC Welder TIG-315P With Pulse Function 60% Duty Cycle Suitable For Aluminium Welding
AC DC TIG welder Product Characteristics:
1) AC DC with pulse function inverter welding TIG machine, suitable for welding of various metallic materials such as aluminum, aluminum alloy, carbon steel, stainless steel, copper, titanium.
2) High duty cycle, continuous operation without interruption at large current is available.
3) Supper strong oxidization film removal capability, continuous and adjustable Removal width, and good weld surface.
4) Built-in alarming and protective circuits are provided to prevent over-current, over-heat, over-voltage and under-voltage, and ensure safely operation.
5) Concentrated heat, easy to fill in the wire, especially suitable for wire welding in bicycle industry..
6) Quality square wave power supply, stable arc, HF arc stabilization not necessary..
.
| Model | WSME-315 |
| Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 16.2 |
| No-load voltage(V): | 75±5 |
| Output current range.(A): | 10-315 |
| Duty cycle (%):(25℃): | 60 |
| Arc-starting: | HF |
| Efficiency(%): | 92 |
| Power factor (COSφ): | 0.89 |
| Insulation class: | F |
| Weight(KG): | 38 |
| Overall dimension(mm): | 560×364×430 |
| Case protection degree: | IP21S |
| Post-flow time(s): | 2-10 |
| Base current(A): | 10-315 |
| Duty ratio(%): | 10-90 |
