Product Details:
|
| Voltage: | 380V±15% Three Phase | Duty Cycle: | 100% |
|---|---|---|---|
| Color: | OEM | Output Current: | 1000 |
| Cable Length: | 15m | Weight: | 98KG |
| High Light: | 380V 1250A Submerged Arc Welder,1000A Submerged Arc Welder,380V 1000A sub arc welding machine |
||

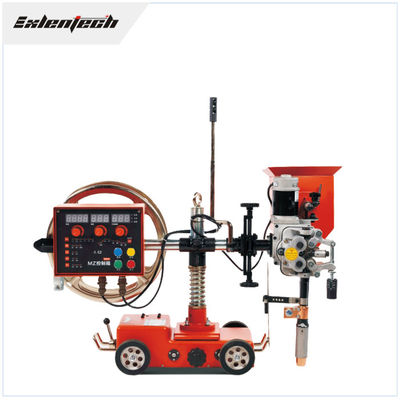

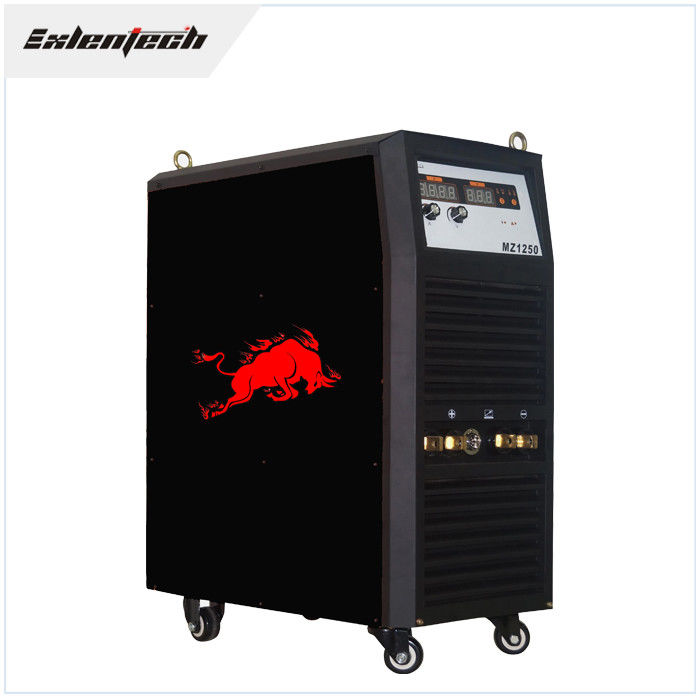

1000A 1250A Heavy Duty Submerged Arc Welder Three Phase 380V
Inverter Submerged Arc Welding Machine SAW-1000 1250 Heavy Duty Perfect Choice For Industrial Work
1. It has many functions such as submerged arc welding, manual welding, carbon arc gouging, etc.
2. Independent dual control system, dual-station manual welding, carbon arc gouging.
3. Double characteristic design, flat characteristic with constant speed wire feeding, suitable for thin wire small current welding sheet.Dropping characteristics with variable speed wire feeding are suitable for heavy current welding of medium and thick plates.
4. Using soft-switch IGBT module inversion technology, welding current is stable and welding seam is beautiful.
5. Excellent welding performance, deep melting pool, high strength and good forming.
6. Widely used in automatic welding of various large carbon steel, alloy steel, stainless steel pressure vessels and metal structures
7. With fault display function, built-in protective circuits such as overheating, overcurrent, overvoltage, closure, etc., safe operation.
| Parameter/Model | MZ1000 |
| Input Vlotage(V) | AC380V±15% |
| Frequency(HZ) | 50/60 |
| Rated Input Current(A) | 84.3 |
| No-load Voltage(V) | 72 |
| Output Current Range(A) | 100-1000 |
| Rated Output Current(V) | 44 |
| Arc Force Current Range(A) | 0-100 |
| Duty Cycle(%) | 100 |
| No-load Loss(W) | 300 |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Housing Protection Grade | IP21S |
| Net Weight(kg) | 60 |
| Packing Dimension(mm) | 800x455x785 |
MOQ:
· The different products with different MOQ. Contact us with more details.
· If with stock, 1-5 sets could be acceptable as well.
Payment:
· TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
· Around 20 days after confirming the payment
Sample Issue
First time to use this kind of machine
· There is an English manual or guide video that show you how to use machine.
· If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
Do you have any concerns about the after-sales service of the welding machines you buy?
We have a complete set of after-sales service system to ensure that you have no worries about purchasing.
1. We provide quality assurance service for up to 12 months wanrranty. The effective time of service is calculated form the date of purchase or Boarding date of BL.
2. For each order, we will provide 1% free PCB or key components for your maintenance.
3. If you encounter problems which can't be fixed by yourself, we can provide technical support through video communication.
4. If bad quality problems occur, our salesmen and technicians will personally go to your company to inspect and repair, and offer solutions.
