Product Details:
|
| Name: | Mosfet Electric Welding Equipment | Voltage: | 220V±15% |
|---|---|---|---|
| Frequancy: | 50/60Hz | Duty Cycle: | 60% |
| Real Current: | 180A | Suitable Metal: | Stainless Steel |
| High Light: | 180A Electric Welding Equipment,8.3KVA Electric Welding Equipment,180A Mosfet Stainless Steel welder |
||
1. Adopting MOSFET inverter technology,advanced electrical circuit design and energy saving.
2. DC TIG function,expert for stainless steel welding,excellent quality and reasonable price.
3. Can be used to weld stainless steel,alloyed steel,copper,titanium etc.
4. Wide working voltage range, strong adaptability to electricity power grid fluctuation, high duty cycle.
5. Easy to start arc, stable welding current, low welding noise and little spatter, good and smooth welding apperance.

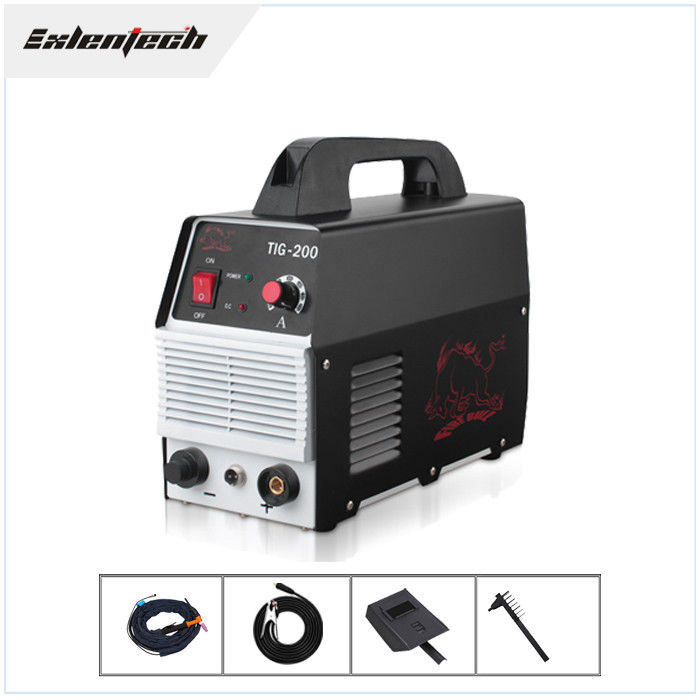

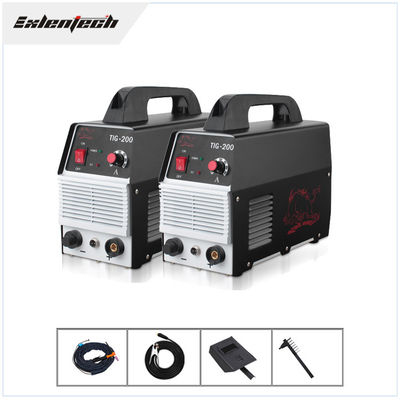

| Model: | TIG-200 |
| Input power Voltage Frequency(V,Hz): | AC220(Single phase)±15%,50/60 |
| Rated input power capacity(KVA) : | 8.3 |
| No-load voltage(v): | 53 |
| Output current range.(A): | 10-200 |
| Rated output voltage(V): | 25 |
| Duty cycle (%)(25ºC): | 60 |
| No-load loss(w): | 60 |
| Thrust force adjustment range: | 10-200 |
| Efficiency(%): | 85 |
| Power factor (COSφ): | 0.93 |
| Insulation class: | F |
| Weight(KG): | 23 |
| Overall dimension(mm):370 | 370×153×272 |
| Case protection degree: | IP21S |
| Welding thickness(mm): | 0.5-8 |
| Current down-slope time(s): | 0-5 |
FAQ
MOQ:
· If you need OEM service or need to distribute our brand? the quantity will be different accordingly,and different model with different MOQ. Please Contact us for more information.
· If you need small quantity for your own use, and you can accept our brand,small quantity could be acceptable.
Payment:
· TT/ LC/Paypal/Western Union etc.TT payment would be preferred for bulk quantity order: 30% deposit and the balance 70% before the shipment.
Delivery time:
· Sample order or small quantity order,we can delivery within 3 days.
· OEM service or other big order,it takes around 20 days after confirming the advance payment
Samples:
Can we mix different items in one container?
· Yes,you can order different model to mix one container,and even you need some other products,we would like to offer help.
What about the after sales service?
Contact Person: kalvin
Tel: 18607555194
